Specification

Rated voltage: 690V

Rated current: 160 to 630A

Breaking capacity: 120kA

Standard: IEC60269

Description

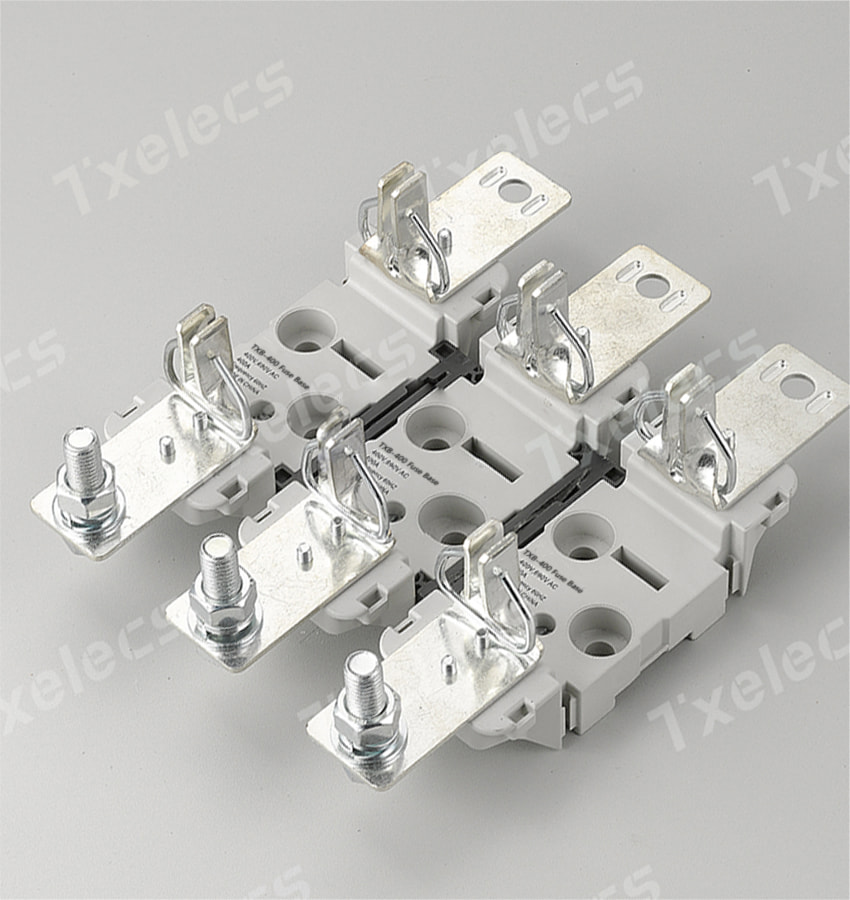

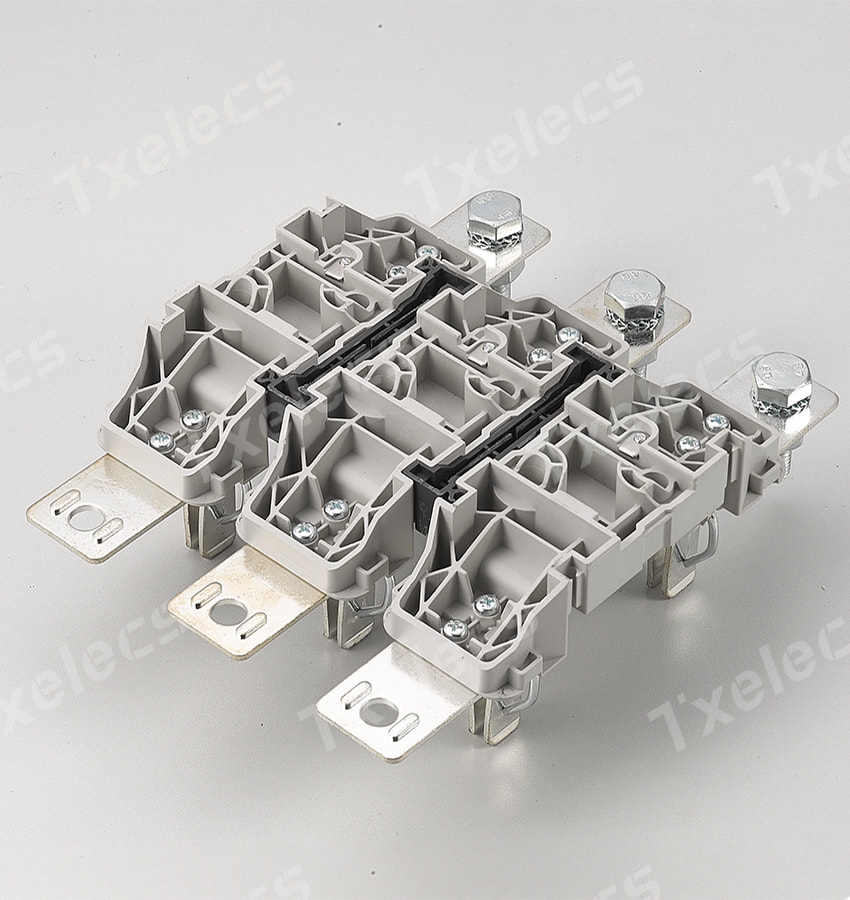

TXB fuse base is for mounting on DIN-Rail or with screw fixing. Single-phase or Three-pole type. This fuse base comes with wide range of accessories, including fuse link, fuse barrier, puller. Installing easily and simply for user, better than other similar products relatively.

TXB fuse bases are made of self-extinguishable material and have tin-plated copper contacts.

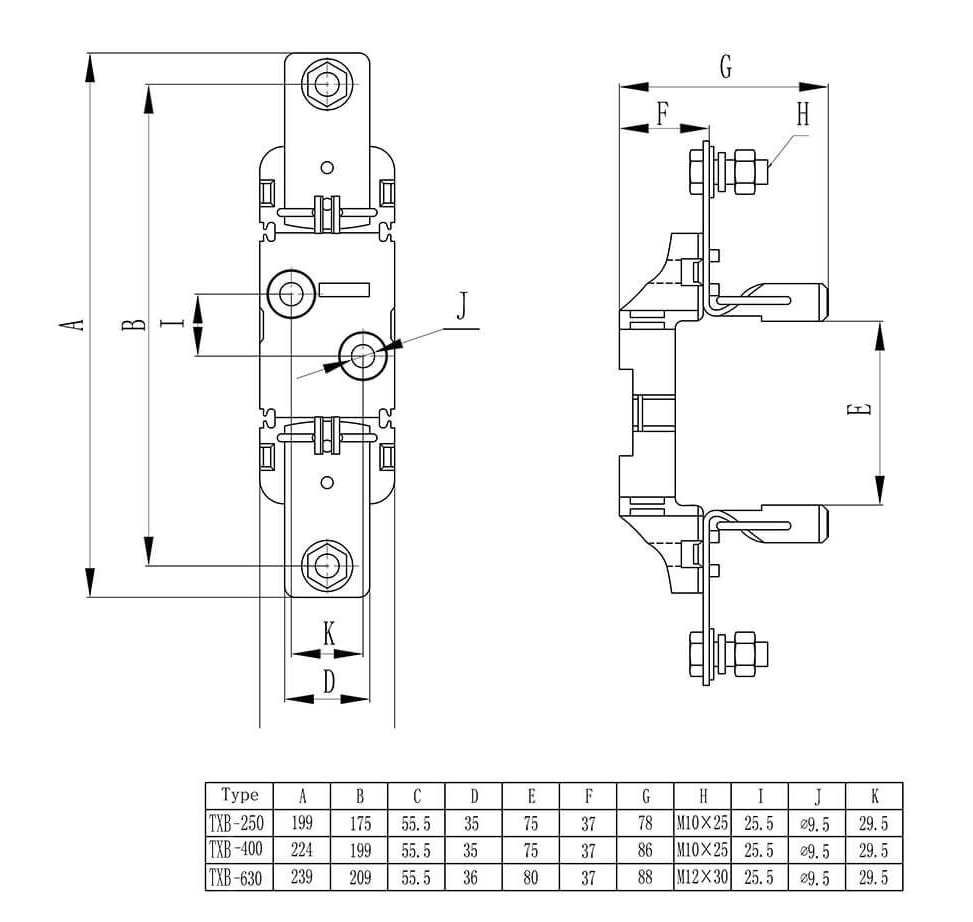

Dimension Drawing
