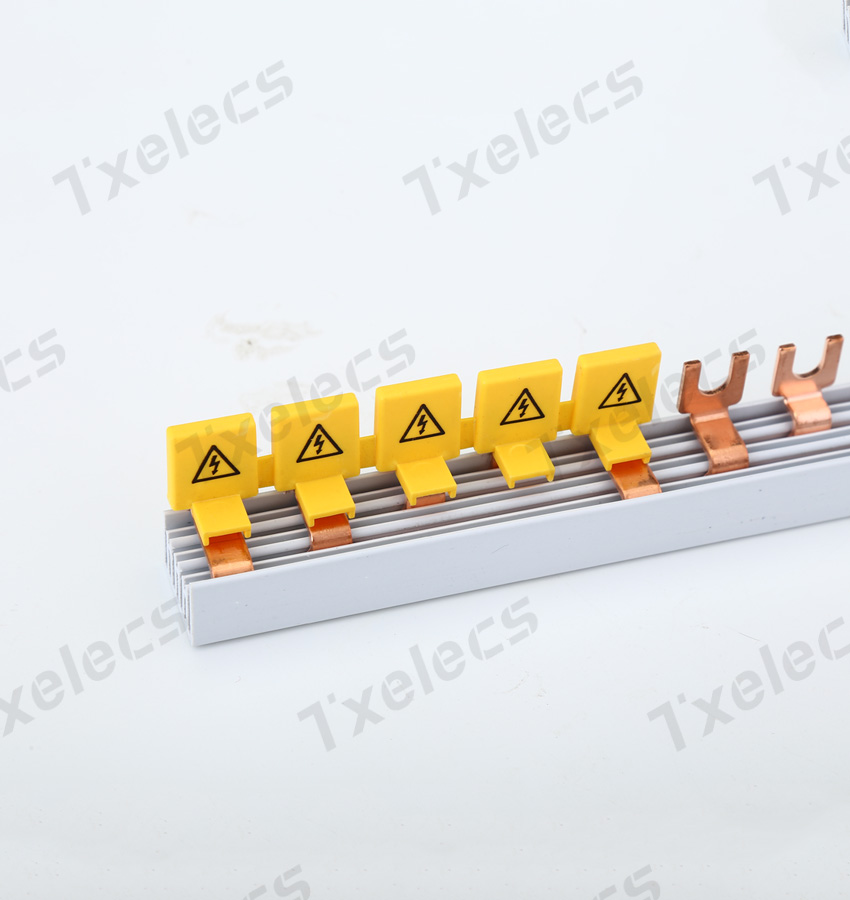

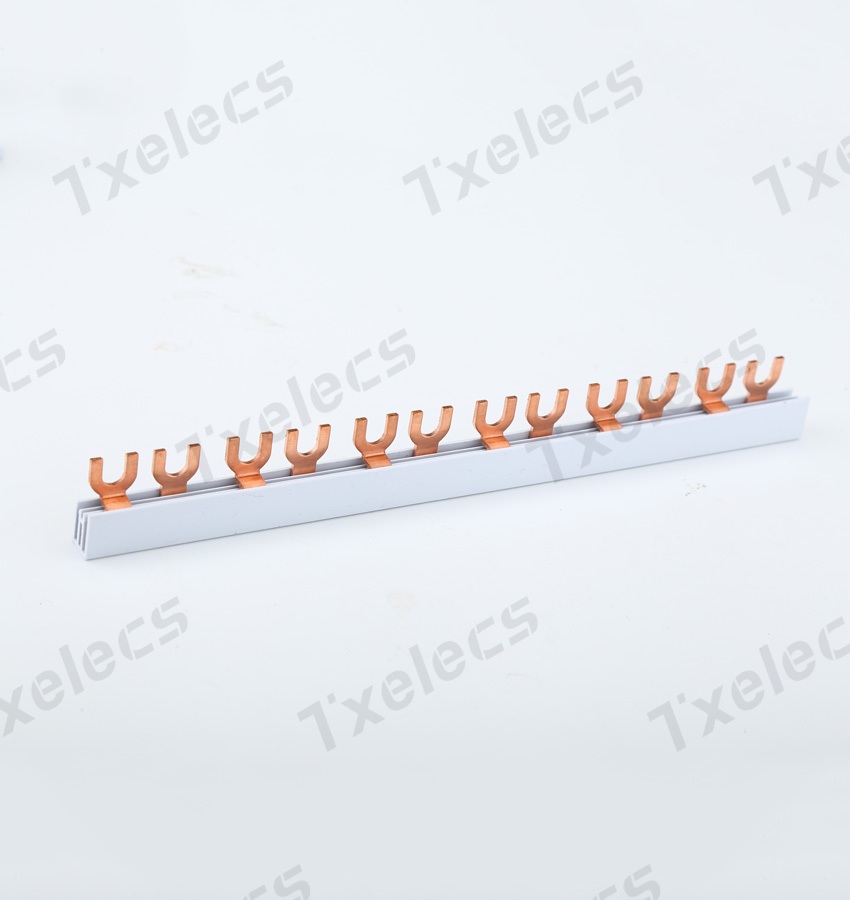

Fork type comb busbar
Fork type comb busbar Fork type comb busbar Fork type comb busbar
Description

Comb busbars are widely used in the industrial, commercial and residential sectors, as well as in specialised areas such as renewable energy and transport infrastructure. Their space-saving design optimises utilisation within switchboards and distribution boxes, while the exposed arrangement enhances thermal performance and ensures system reliability.



These busbars are modular and scalable, allowing for easy expansion and adjustment of configurations to meet changing power distribution requirements. With flexibility and scalability, greater fault tolerance and simplified maintenance, comb busbars provide a comprehensive solution for safe and efficient power distribution.



Parameters

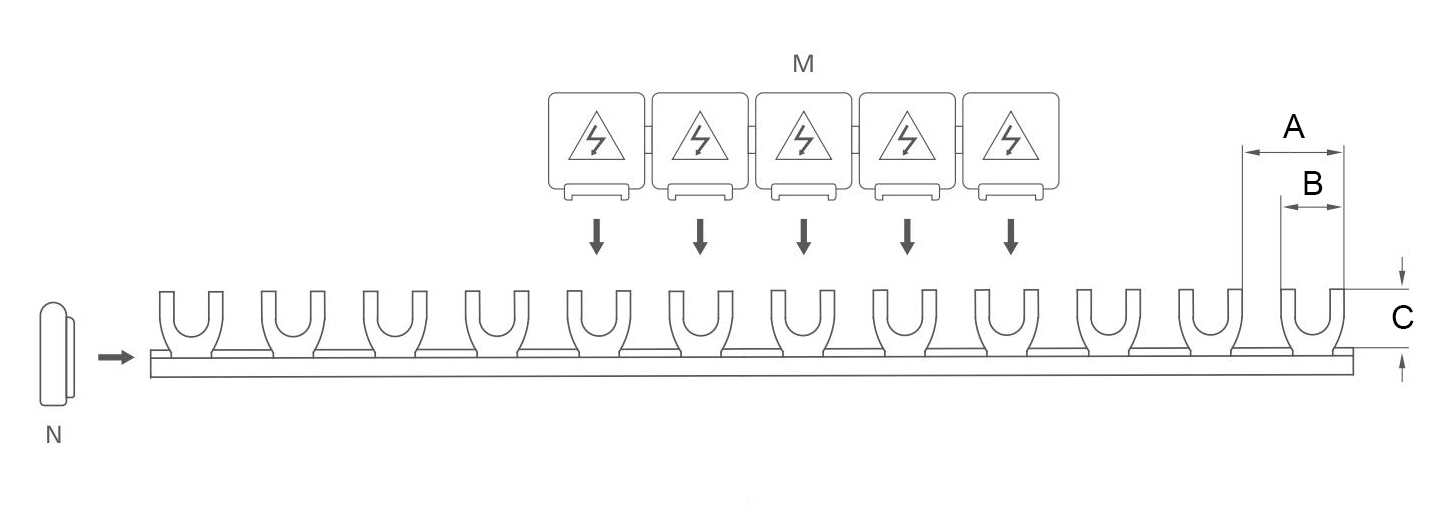

Type Current Cross Section Distance(mm)
A		 Width of Fork(mm)
B		 Length of Fork(mm)
C		 Modules
Fork type 1P 63A 10mm2 17.8 12 12 54
Fork type 1P 70A 13mm2 17.8 12 12 54
Fork type 1P 80A 16mm2 17.8 12 12 54
Fork type 2P 63A 10mm2 17.8 12 12 54
Fork type 2P 70A 13mm2 17.8 12 12 54
Fork type 2P 80A 16mm2 17.8 12 12 54
Fork type 3P 63A 10mm2 17.8 12 12 54
Fork type 3P 70A 13mm2 17.8 12 12 54
Fork type 3P 80A 16mm2 17.8 12 12 54
Fork type 4P 63A 10mm2 17.8 12 12 54
Fork type 4P 70A 13mm2 17.8 12 12 54
Fork type 4P 80A 16mm2 17.8 12 12 54
