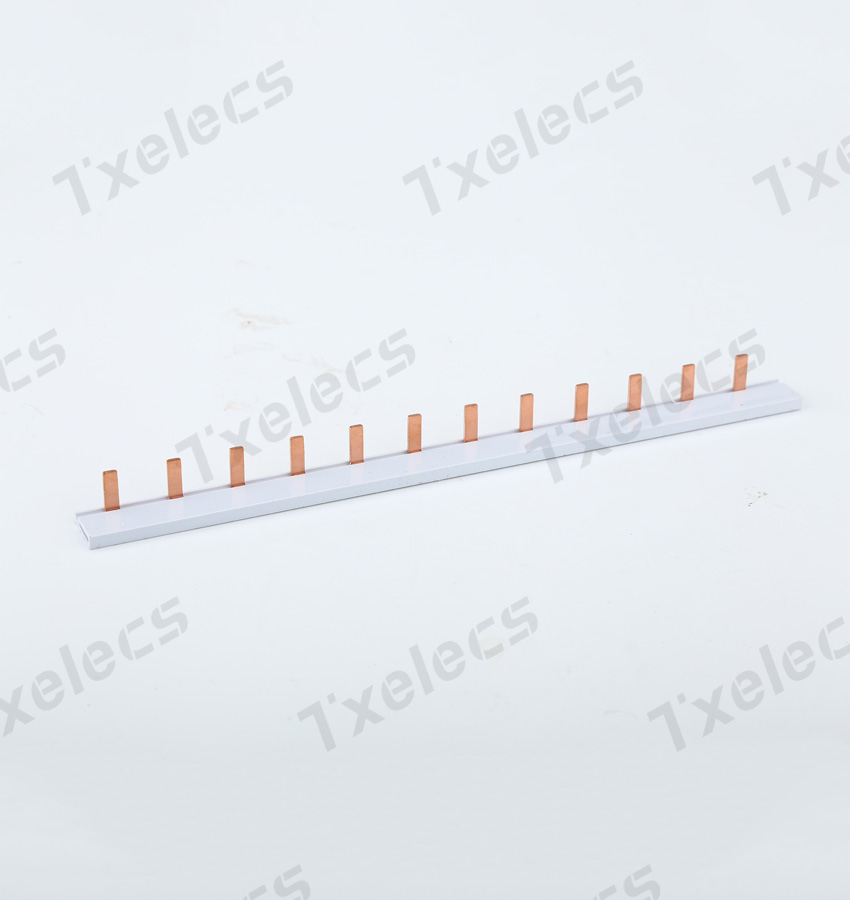

Pin type comb busbar
Description
Comb busbars are widely used in the industrial, commercial and residential sectors, as well as in specialised areas such as renewable energy and transport infrastructure. Their space-saving design optimises utilisation within switchboards and distribution boxes, while the exposed arrangement enhances thermal performance and ensures system reliability.
These busbars are modular and scalable, allowing for easy expansion and adjustment of configurations to meet changing power distribution requirements. With flexibility and scalability, greater fault tolerance and simplified maintenance, comb busbars provide a comprehensive solution for safe and efficient power distribution.
Parameters

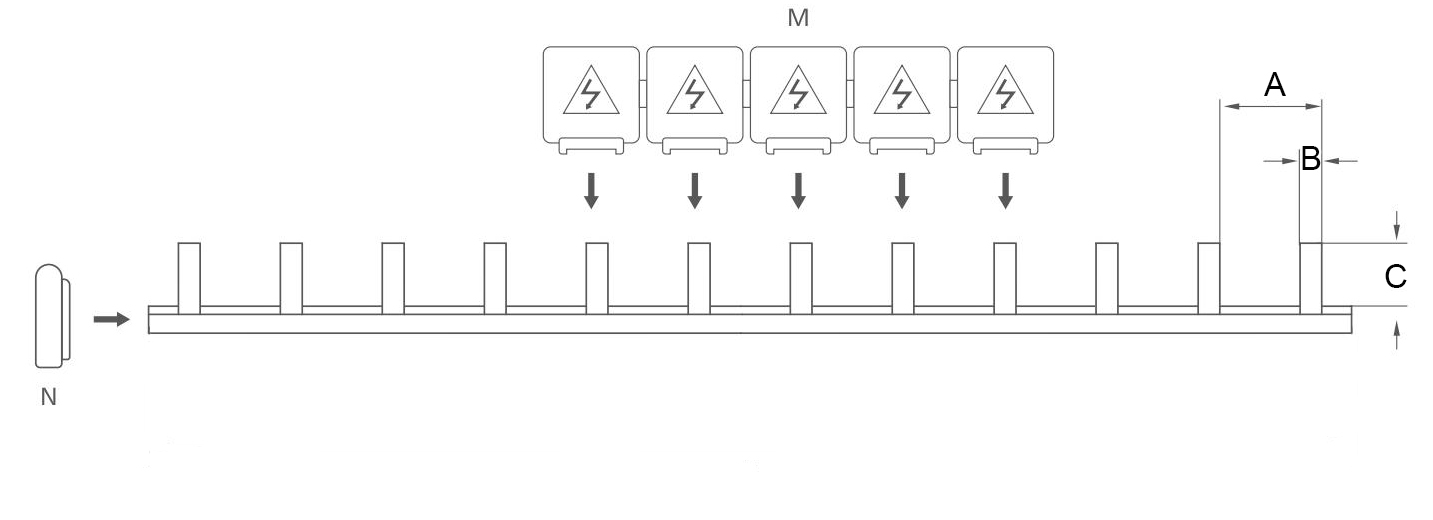

Type | Current | Cross Section | Distance(mm) A |
Width of Pin(mm) B |
Length of Pin(mm) C |
Modules |
Pin type 1P | 63A | 10mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 1P | 70A | 13mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 1P | 80A | 16mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 2P | 63A | 10mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 2P | 70A | 13mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 2P | 80A | 16mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 3P | 63A | 10mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 3P | 70A | 13mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 3P | 80A | 16mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 4P | 63A | 10mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 4P | 70A | 13mm2 | 17.8 | 4 | 11.5 | 54 |
Pin type 4P | 80A | 16mm2 | 17.8 | 4 | 11.5 | 54 |
