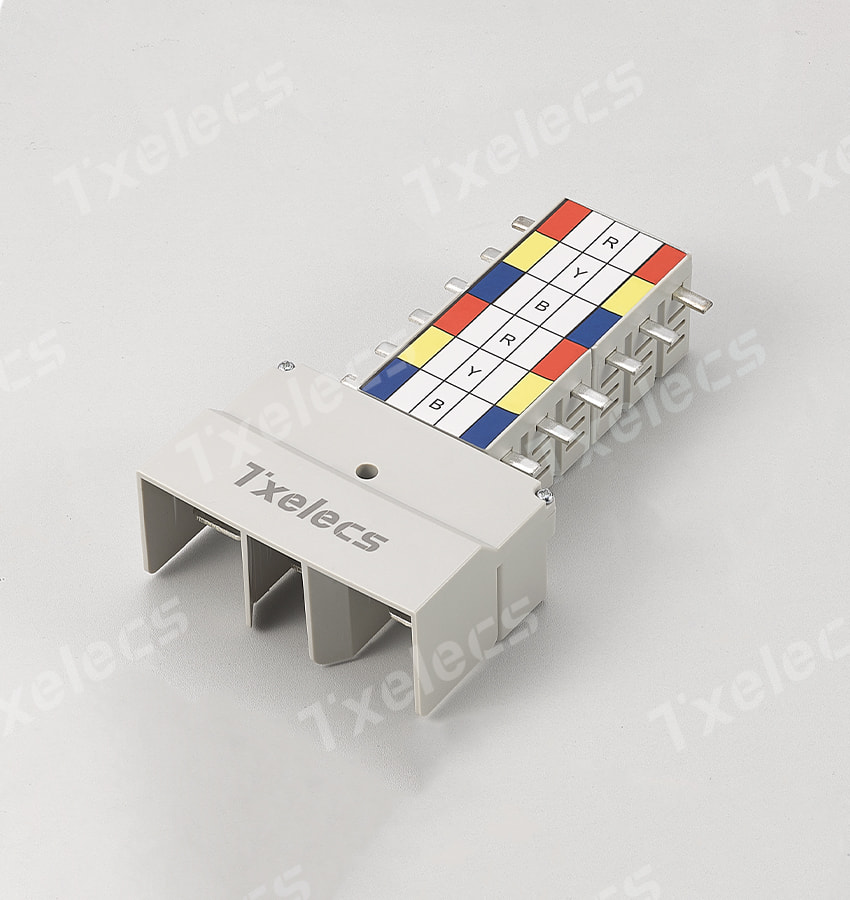

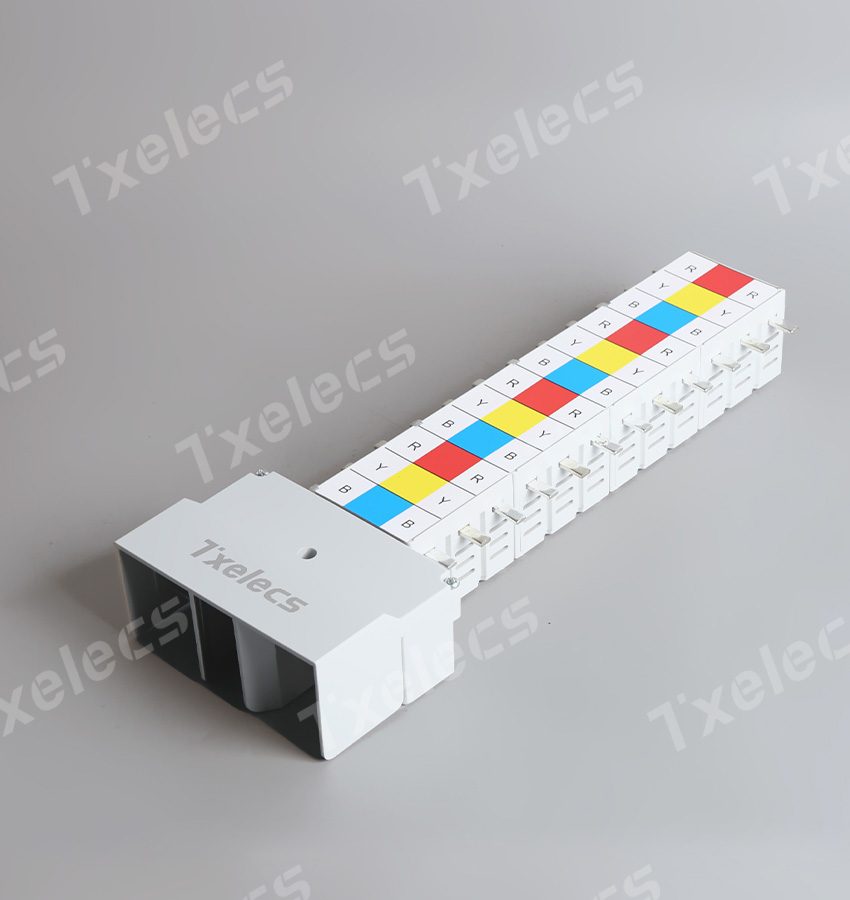

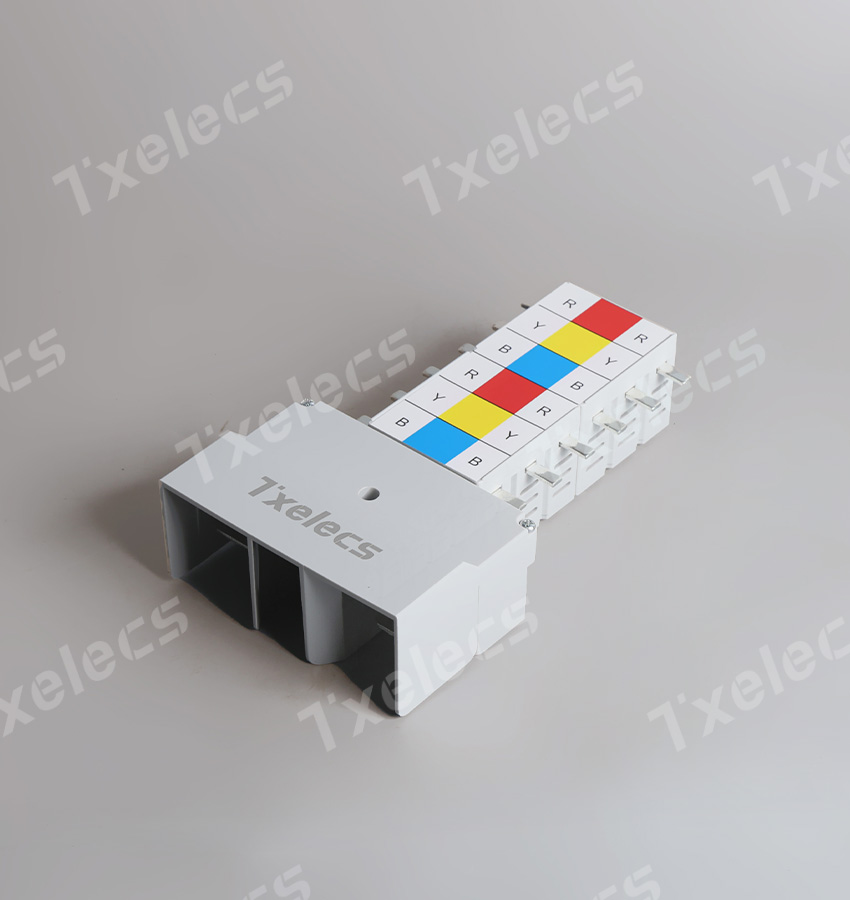

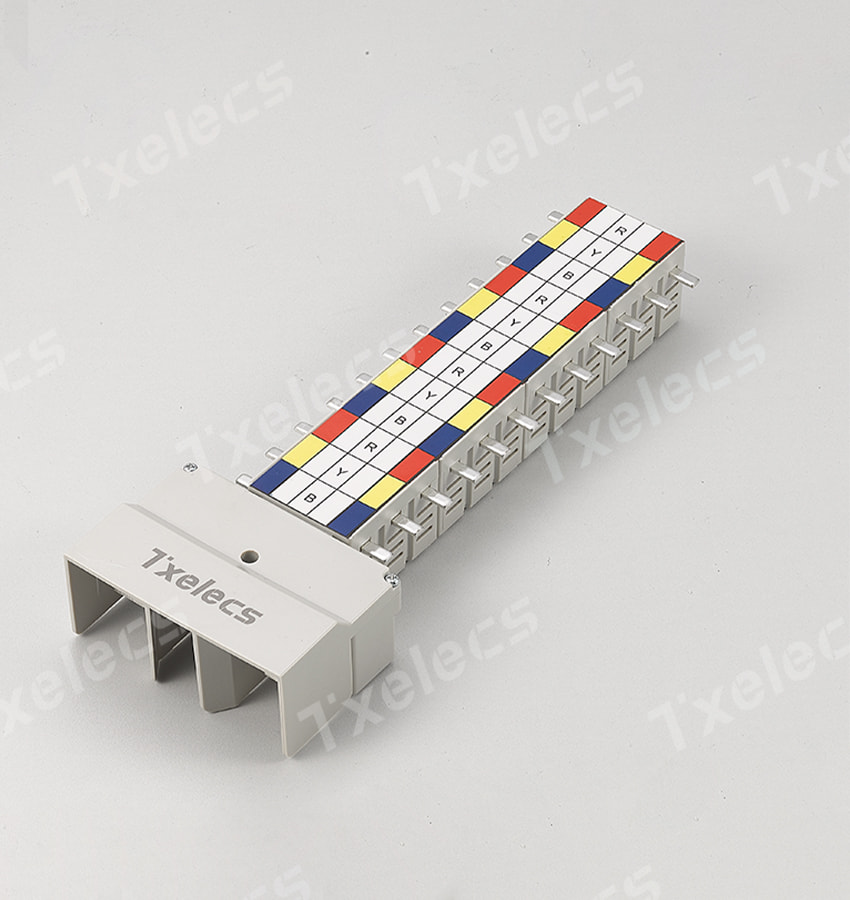

MCB Pan assembly
Description
This pan assembly is widely used in power electric distribution boxes due to its easy operation, safety and efficiency. Installation of incoming and outgoing switches can be matched with din rail slots or different module group so that the product can be connected to different types switches. The product has red, yellow and blue labels to identify the corresponding current.
Parameters
| Model | Connect Size(mm) Thickness* Width |
Outline Size(mm) Thickness* Width |
Bus bar Size(mm) Length*Width*Height |
| TXP-125A/4W | 2*5 | 2*20 | 180*49*46 |
| TXP-125A/6W | 2*5 | 2*20 | 234*49*46 |
| TXP-125A/8W | 2*5 | 2*20 | 288*49*46 |
| TXP-125A/10W | 2*5 | 2*20 | 342*49*46 |
| TXP-125A/12W | 2*5 | 2*20 | 396*49*46 |
| TXP-125A/14W | 2*5 | 2*20 | 450*49*46 |
| TXP-125A/16W | 2*5 | 2*20 | 504*49*46 |
| TXP-125A/18W | 2*5 | 2*20 | 588*49*46 |
| TXP-125A/20W | 2*5 | 2*20 | 612*49*46 |
| TXP-250A/4W | 3*5 | 3*30 | 180*49*46 |
| TXP-250A/6W | 3*5 | 3*30 | 234*49*46 |
| TXP-250A/8W | 3*5 | 3*30 | 288*49*46 |
| TXP-250A/10W | 3*5 | 3*30 | 342*49*46 |
| TXP-250A/12W | 3*5 | 3*30 | 396*49*46 |
| TXP-250A/14W | 3*5 | 3*30 | 450*49*46 |
| TXP-250A/16W | 3*5 | 3*30 | 504*49*46 |
| TXP-250A/18W | 3*5 | 3*30 | 588*49*46 |
| TXP-250A/20W | 3*5 | 3*30 | 612*49*46 |
