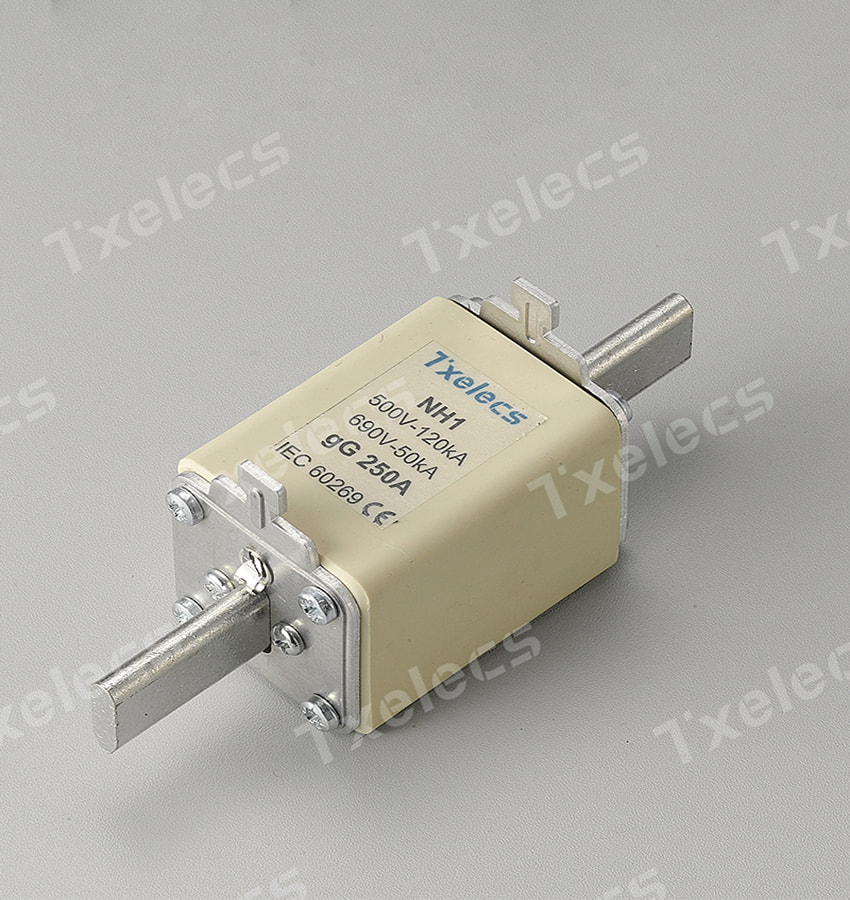

NH Fuse
Specification
Voltages: up to 690V
Current: up to 1250A
Working frequency: AC50Hz
Breaking capacity: 120kA
Application: Protection the circuits against overload and short-circuit, also protecting motor and transformer in power distribution line.
Standard: IEC60269
Description
NH fuses have high breaking capacity and used for general protection against short circuits and current overloads. This fuses are mainly for the protection of power lines, cables and equipment which have a voltage rating of 500V. Compact versions are also available for low rated currents in every size. In the top of the fuse link, we have the fusing indicator. It is capable of withstanding high thermal shock and internal pressure because of the ceramic body which allows high breaking capacity. The fuses are manufactured according to IEC standards.
Parameters
| Type | Rated Voltage(V) | Rated current(A) | Dimensions(mm) | Fig. No. | ||||||
| A | B | C | D | E | F | G | ||||
| NHOOC | AC500/690 | 4-100 | 78 | 54.5 | 21 | 6 | 21 | 53 | 15 | Fig.8 |
| NH00 | AC500/690 | 4-160 | 78 | 54.5 | 30 | 6 | 30 | 61 | 15 | Fig.8 |
| NH0 | AC500/690 | 4-160 | 125 | 68 | 30 | 6 | 48 | 61 | 15 | Fig.9 |
| NH1 | AC500/690 | 80-250 | 135 | 68 | 48 | 6 | 48 | 61 | 20 | Fig.9 |
| NH2 | AC500/690 | 125-400 | 150 | 75 | 58 | 6 | 58 | 73 | 25 | Fig.9 |
| NH3 | AC500/690 | 315-630 | 150 | 75 | 68 | 6 | 68 | 83 | 32 | Fig.9 |
| NH4 | AC500/690 | 800-1250 | 200 | 97 | 100 | 6 | 100 | 112 | 50 | Fig.10 |

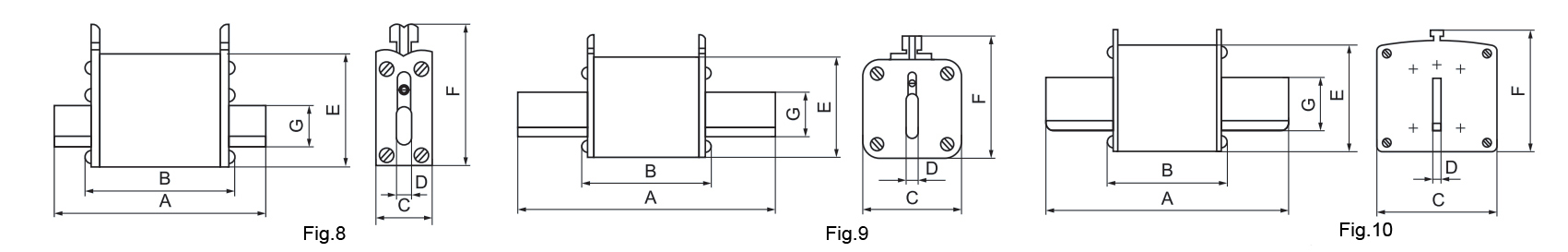

Dimensional Drawing
